Product parameters

Funtion：4.5V to 32V Input High Current LED Driver IC For Buck or Buck-Boost Topology

Opration Mode：Switch

Vin Range：4.5V-32V

Operating Current：800uA

Solar Panel charge：No

Chip Temperature Regulation：No

Package：SSOP10

Switching Frequency：330kHz

Dimming：No

Chip Enable：Yes

On-chip Power MOSFET：No

General Description:

The CN5816 is a current mode fixed-frequency PWM controller for high current LED applications. The device operates from an input supply between 4.5V and 32V and provides to drive an external N-channel MOSFET. With the maximum operating input voltage of 32V, the CN5816 is ideal for buck or buck-boost LED driver operation.

The CN5816 contains all the necessary building blocks including a bandgap reference, a 330KHz oscillator, current-mode control circuitry, chip shutdown block, softstart block and gate driver, etc.

Current mode control provides improved transient response and simplified loop compensation. On-chip soft start reduces the inrush current on power up. The other features include chip shutdown, over voltage protection, built-in 5V regulator and slope compensation, etc.

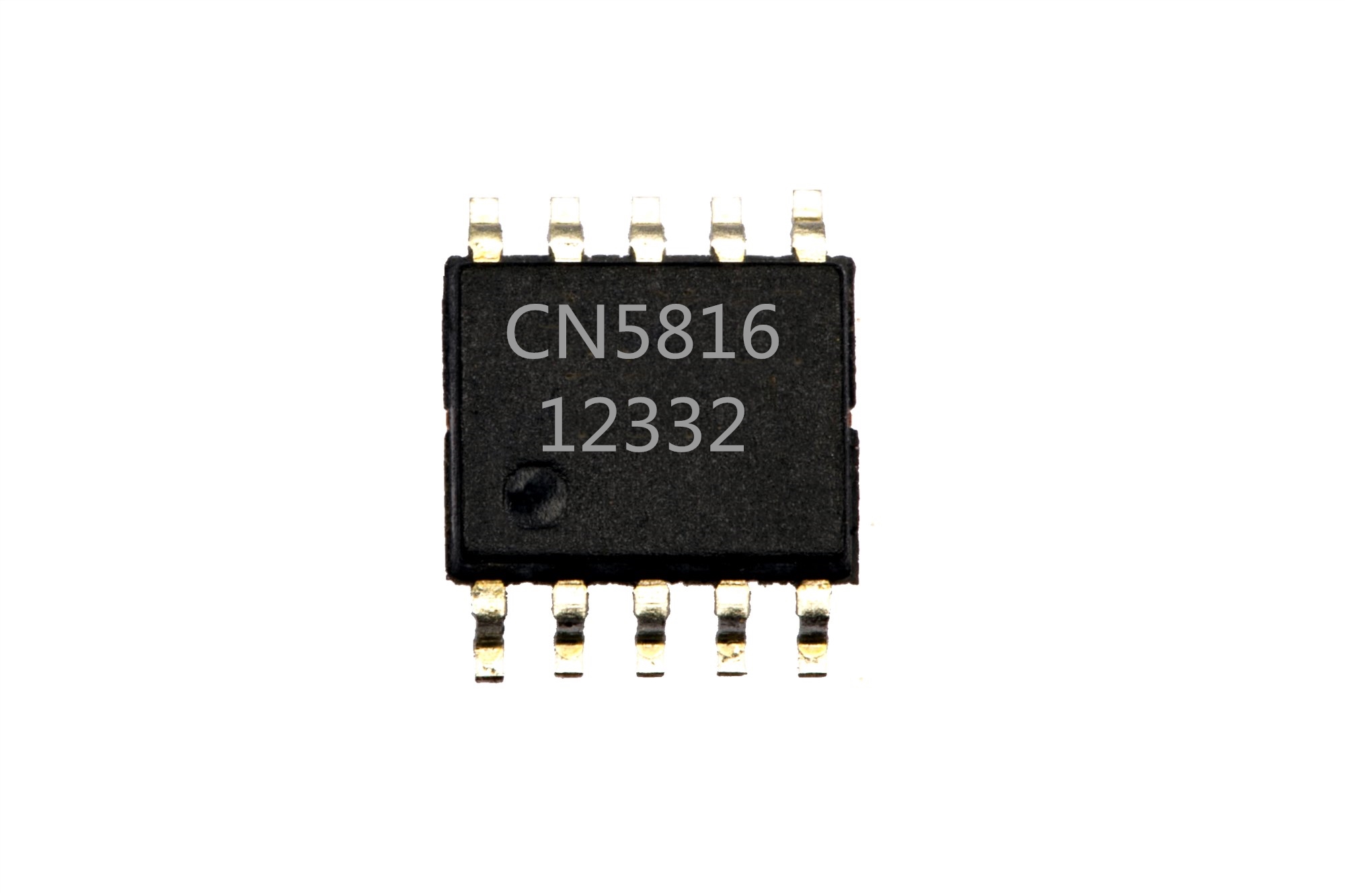

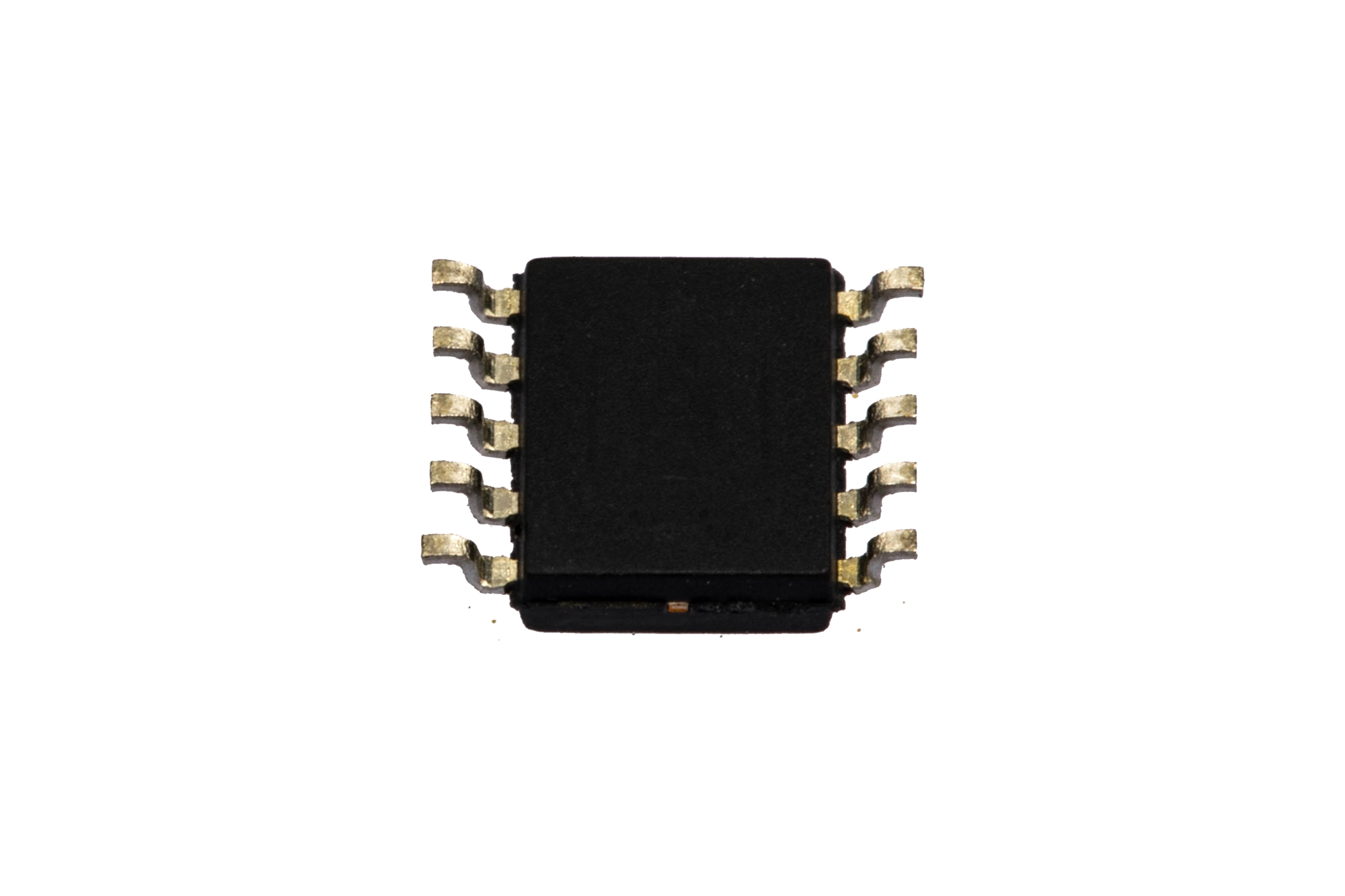

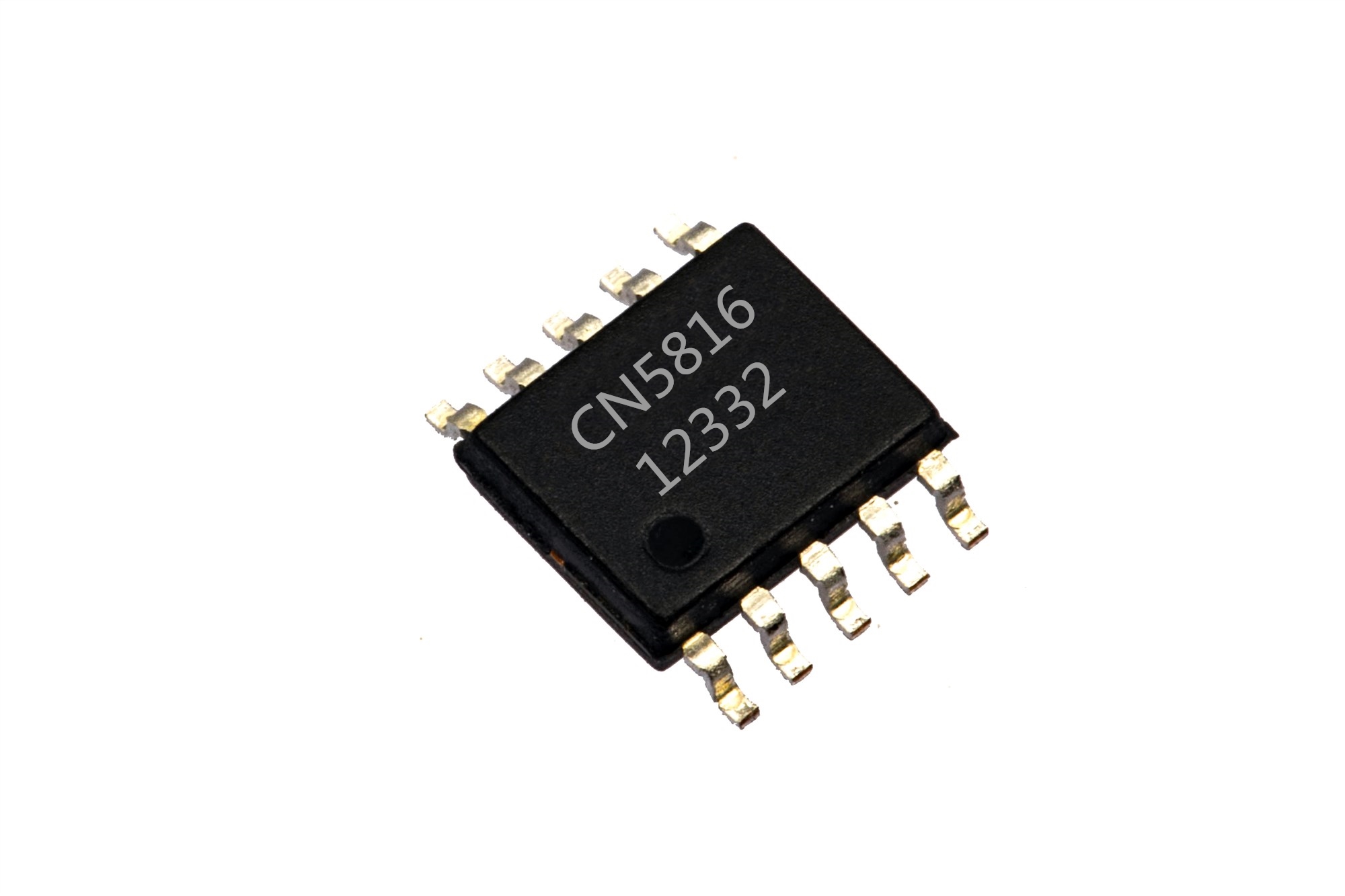

The CN5816 is available in 10-pin SSOP package.

Applications:

l  High Power LED Lighting

l  Desk Lights and Room Lighting

l  Building and Street Lighting

l  Industrial Display Backlighting

Features:

l  Peak Current Mode Controller

l  4.5V to 32V Input Range

l  Buck or Buck-Boost Operation

l  330kHz Switching Frequency

l  High Side Current Sense

l  120mV Current Sense Threshold

l  Cycle-by-Cycle Peak Inductor Current Limit

l  On-Chip Slope Compensation

l  Programmable Over Voltage Protection

l  Internal Soft-start to Avoid Inrush Current

l  Built-in 5V Regulator

l  Low Shutdown Current

l  Operating Temperature Range:
     －40℃ to 85℃

l  Available in 10-pin SSOP package.

l  Lead-free, Rohs-compliant and Halogen free
