Product parameters

Funtion：1A LDO Linear Regulator

Opration Mode：Linear

Vout Range：3.3V

Vin Range：2.7V - 6V

Max Output Current：1A

Operating Current：410uA @3.7V

Solar Panel charge：No

Chip Temperature Regulation：Yes

Package：eSOP8

Chip Enable：Yes

On-chip Power MOSFET：Yes

General Description:

 The CN2626 is a low-noise, linear regulator that delivers up to 1A of output current. The regulator maintain ±1% output accuracy over a wide input voltage range of 2.7V to 6V, requiring only 300mV of input-to-output headroom at full load. The 410μA no-load supply current is independent of drop-out voltage.

The CN2626 has fixed output voltages of 2.5V, 3.0V, 3.1V, 3.3V, 4.0V, and 5V. The CN2626 adopts constant current mode for users to set the maximum output current flexibly. When the output is shorted, the output current will be limited to 10% of the constant current. Also CN2626 adopts temperature regulation instead of over-temperature protection, which will regulates the output current to limit the die temperature during high power operation or high ambient temperature.

The other features include on-chip soft-start, output over-current protection and chip enable, etc.

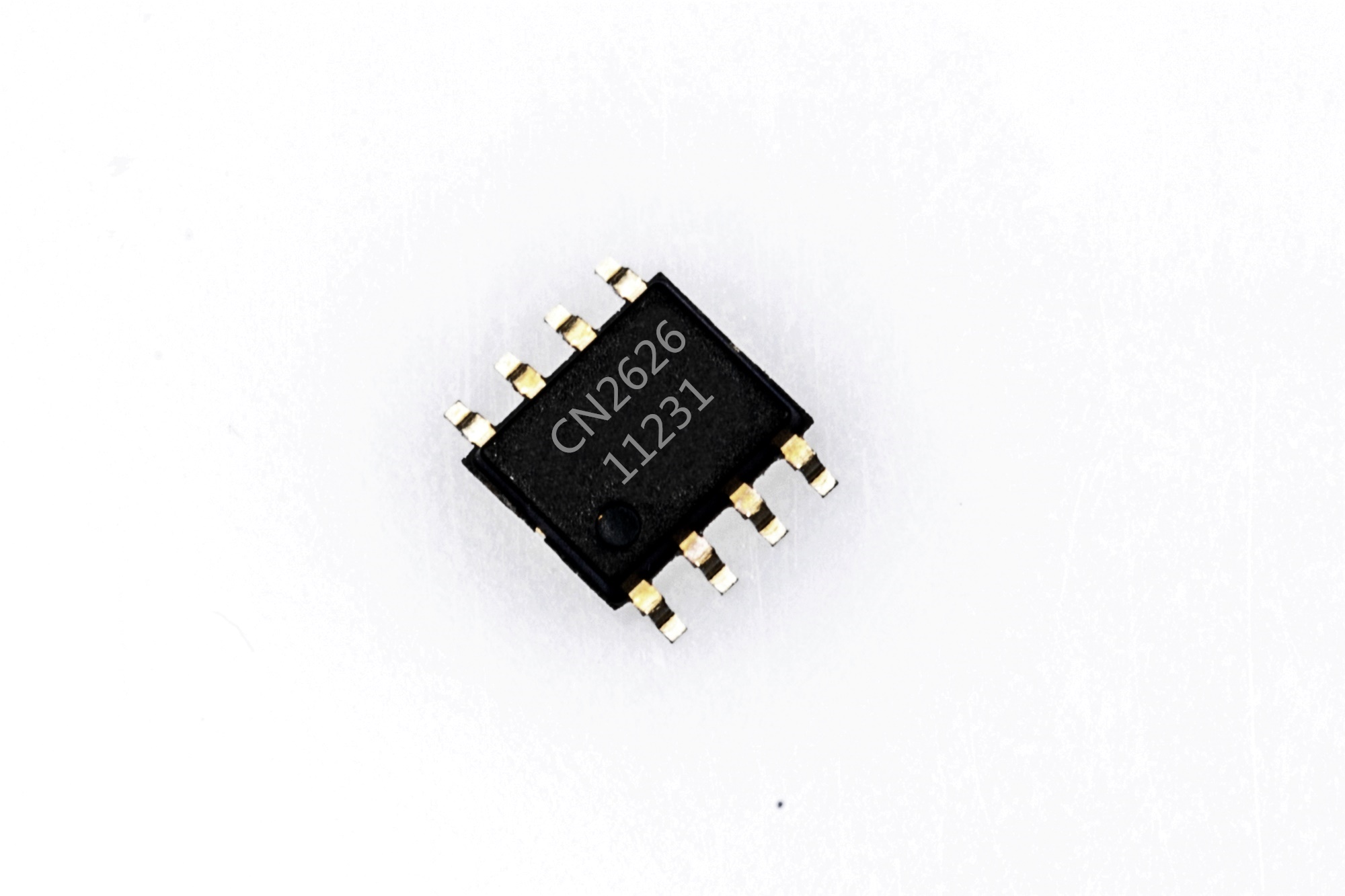

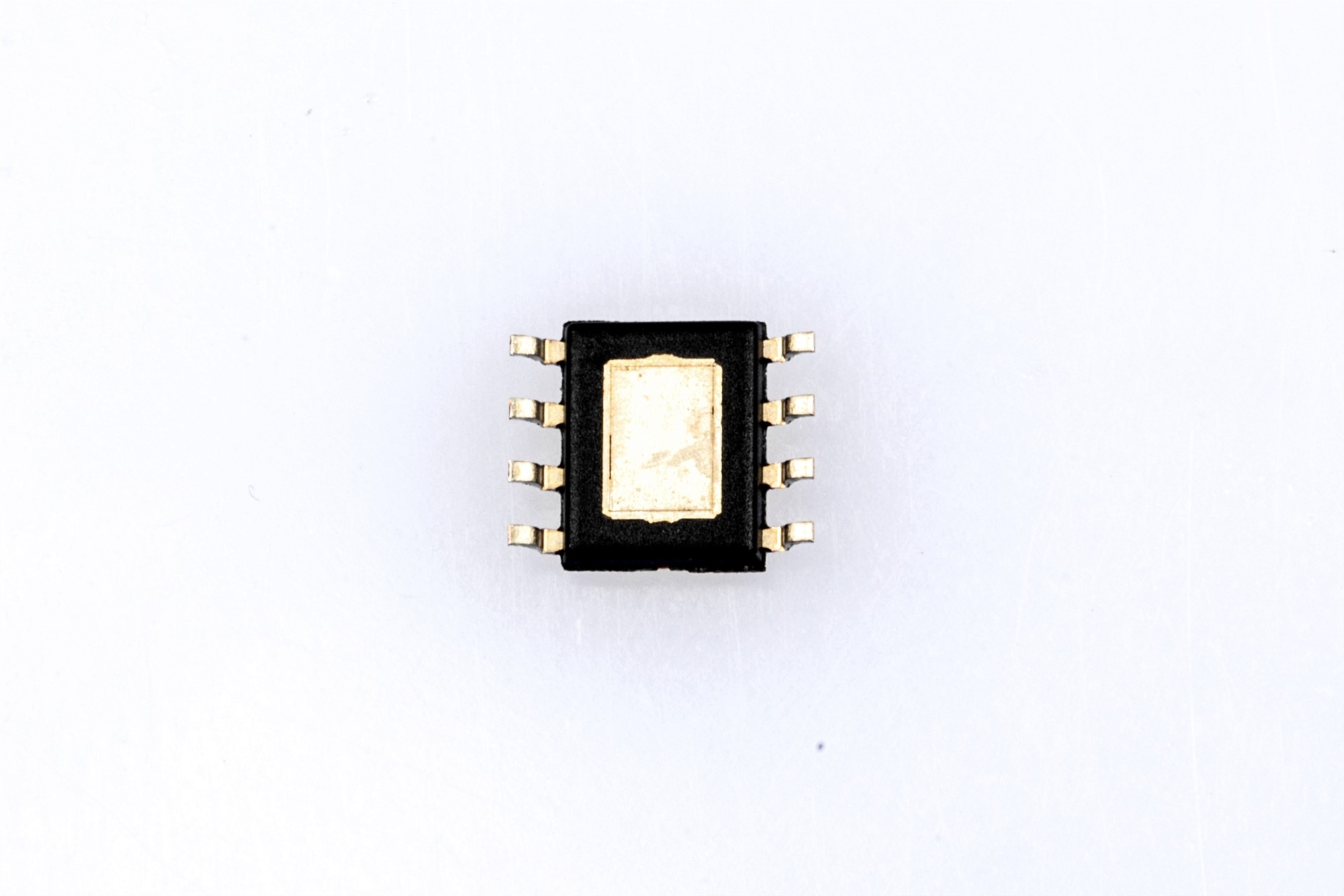

The CN2626 is available in a thermally enhanced 8-pin SOP package.



Applications:

l  Audio Systems

l  Wireless LAN

l  Communication Circuitry

l  Supply for Low-voltage Digital Circuit

l  Post Regulator

Features:

l  2.7V to 6V Input Voltage Range

l  Factory-Preset Output Voltage

l  Output Voltage Accuracy: ±1%

l  Maximum Output Current: 1A

l  53dB PSRR at 10kHz

l  Operating Supply Current at 3.7V: 410uA

l  Shutdown Supply Current: 1.7uA@VIN=3.7V

l  On-Chip Soft-Start

l  Stable with 1μF(Min) Output Capacitance

l  Constant Current Mode

l  Short Circuit Current: 10% of Constant Current

l  Overcurrent Protection

l  Output-to-Input Reversed Current Protection

l  On-Chip Temperature Regulation Instead of Over-Temperature Protection

l  Available in eSOP8 Package

l  Pb-free, rohs-Compliant and Halogen Free
